Solar Pump
What is a Solar Pump ?
A solar pump is an eco-friendly, energy-efficient system that uses solar energy to power water pumping operations. It consists of solar photovoltaic (PV) panels, a controller, and a pump (either submersible or surface), converting sunlight into electricity to draw water from Sources such as borewells, rivers, lakes, or tanks.

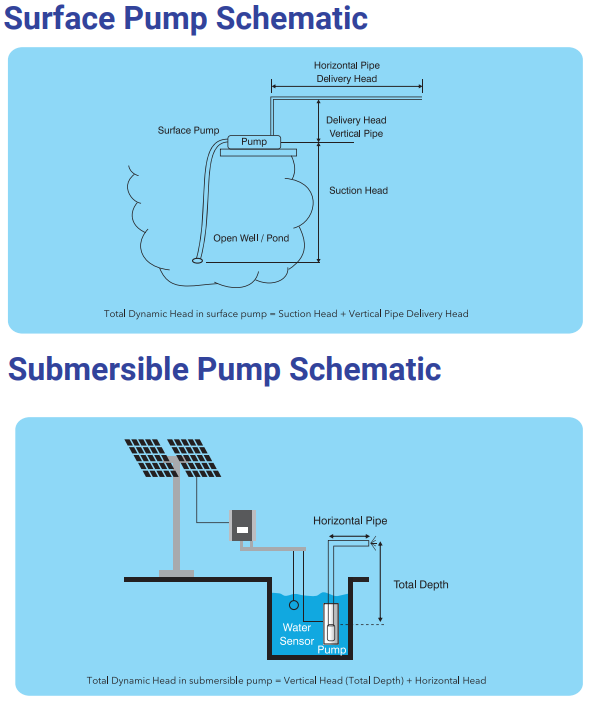

Solar Water Pump working Procedure
The Photovoltaic cells in solar modules convert sunlight in to Direct Current (DC) electrical energy.This DC energy is then fed to the Motor Pump Set via Pump Controller in case of DC pump or via Variable Frequency Drive (VFD) in case of AC Pumps (VFD controls speed of Motor ). The Pumping system is combination of an Impeller and Motor, The impeller proples water movement and the Motor drives the pump. The water is propelled ourt of the bore well/ river/lake/pond through the pipe so that water can then be fes to the fields for irrigation and other purposes. Water output caries during the day depending upon varying solar irradiance.
Benefits of Solar Pump
No dependence on erratic grid power and saving on expensive diesel
Higher yield during the day time when crop gets all the necessary ingredients -sunlight and water
Water output across all seasons to cultivate multiple crops every year
One time investment and then zero running costs (free sunlight) for many years to come
Easy for farmers to cultivate the land during day time rather than at night time when grid is erratic
Drip and sprinkler systems can be connected with the solar system to further improve crop yield
Solar system needs no maintenance except regular cleaning of the modules-no consumables; easy to operate
As water can be harnessed any time of the day, the user can plan his other activities. independently
Contribution to reduction of carbon emission and pollution
1 +
Years Experience
Why Choose Sigmafos® Solar Pumps?
- High-efficiency BLDC motors
- Durable construction for harsh environments
Excellent ROI with zero operating cost
Easy installation and low maintenance
Designed for maximum water output even in low sunlight conditions.
They are Indian government’s MNRE certified products
Key Points of Solar Pumps
Do's
- Check the connections and cables periodically for any damages and report.
- Always operate the controller with dry hands.
- Set the tracker to position shown.
- After sunset, when operating in manual mode, modules must be brought to stow position which is parallel to the earth.
- Check safety rope for damages and replace when needed.
- After any storms/rain, check the system for healthy working.
- Controller to be operated by trained people.
- Clean the modules early in the morning or late in the evening when the modules are at normal temperature.
- Keep the controller box locked.
- If the controller or actuator is not working, then, do place a call to the customer service support team of Tata Power Solar.
- Get the annual maintenance contract signed.
- Ensure the lubrication on screw rods (manual tracking) is provided every 3 months for smooth operation.
Dont's
- Do not replace any modules with modules of other make or rating.
- Do not open the connections between the modules.
- Junction box must not be operated by an untrained person.
- Do not compare your pump's water discharge at the field with that of neighbours, as it depends on the bore condition.
